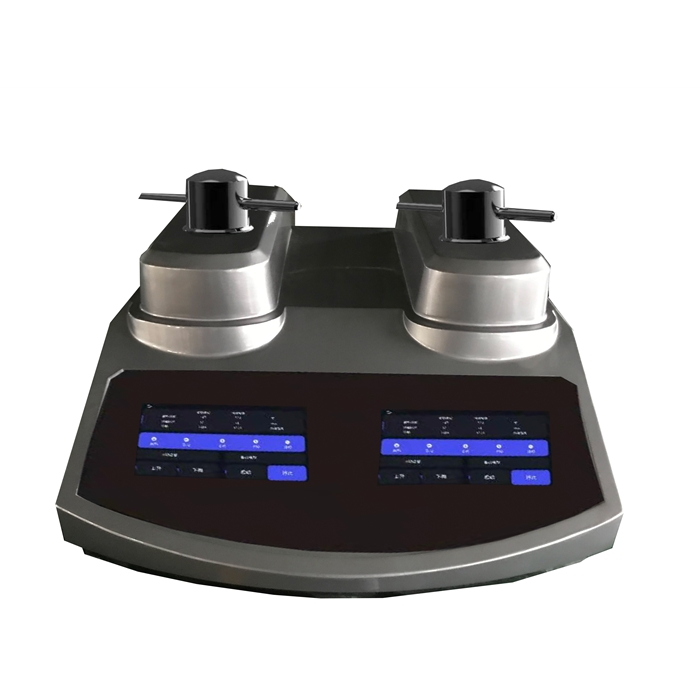

ZXQ-4S Metallographic mounting machine
ZXQ-4S Metallographic mounting machine
Details
：
Product Introduction
The automatic metallographic sample mounting machine is a multi-functional water-cooled mounting machine for mounting various samples. Inlay small and irregular workpieces. After mounting, it is convenient to perform grinding and polishing operations on the workpiece and it is also beneficial for users to observe the structure of the material under the metallographic microscope more conveniently.
This machine adopts hydraulic control. The biggest feature is that the cylinder body adopts special process design, and the inlay process is completed in 5-6 minutes.
Main Specifications
Specimen pressing specification: ф22mm, ф30mm, ф45mm, (choose 2)
Heating power: 2400W*2
Input voltage: 220V 50HZ
Sample preparation pressure: 0-10MPa
Sample preparation time: 5-6min
Cooling method: water cooling
Dimensions: 677*490*500mm
Net weight: 85Kg
