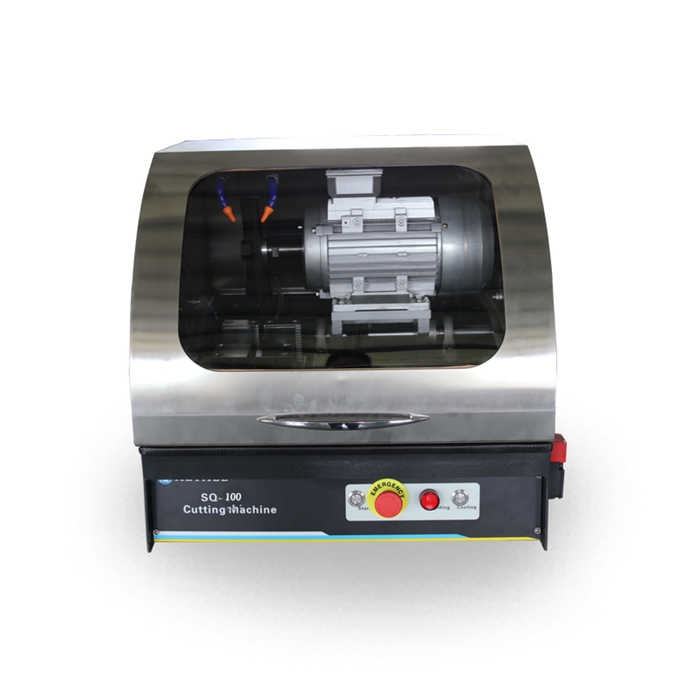

SQ-100 Manual Metallographic Cutting Machine
I、Product description：
SQ-100 Manual Metallographic Specimen Cutting Machine / Metallographic Equipment is suitable for cutting and general metallography and material of species. Metallurgical sample preparation, process of the cutting of the sample, the material of the sample, and the principle of high-security operations speed rotations sheets enhance the grid cutting to the cutting sample, avoiding the cutting the specimen overheating and burning material organization.II、Features and Application:
The the machine is equiped with a cooling system system used to take away the the heat of the company and to improve the management of the operation. and other advantages, cutting, range, transmission, power, and similar products, sample and the best choice for cutting and equipping.
III、Technical Parameters:
Model
SQ-100
Max. cutting Dia.
100mmx100mm
Grinding wheel
300*2*32mm
Rotating speed
2800r/min
Input Voltage
Three phase 380V,50Hz
Power
3.0KW
Weight
130KG
Dimension
680*800*800mm
IV、installation method：
1. The machine should be placed on a stable work surface.
2. Install the water inlet pipe, the water outlet pipe should be lower than the body water inlet to prevent poor drainage.
3． This machine is wired, the grounding wire is the national standard (yellow and green), and the remaining 3 colored wires are the main power lines. Check whether the electrical components such as the power cord, plug and connector are intact, then connect the power supply and start the motor. The motor should be marked in accordance with the direction on the machine.
Note: This appliance uses three-phase four-wire, and the ground mark must be a ground wire.
V. Steps
Step 1: Put the specimen on the working table inside the jig, adjust the jig,make sure the specimen clamped tightly.
Step 2: Adjust the cooling system postion. And cover the door.
Step 3: Turn on the main power switch, turn from 0 to 1
Step 4: Release the emergency stop, turn on the cooling system.
Step 5: Press the start key, the motor start running, hold the handle at right side of the machine, let the grinding wheel touch the specimen slowly and cut the specimen.
