HBST-3000AZ It is suitable for the hardness measurement of cast iron, steel, non-ferrous metals and soft alloys, and also suitable for hard plastics and bakelite Determination of the hardness of some non-metallic materials.

HBST-3000AZ The computer-type image Brinell hardness tester shell is cast with strong rigidity and high measurement accuracy; it adopts a precise structure design, and the test force is directly controlled by the force sensor, so that the whole machine has a compact structure and the loading and unloading test force is stable and accurate.

The test process is electrically controlled by the CPU, the objective lens and the indenter are automatically switched, and the switching positioning adopts the dual cooperation of mechanical and electronic to improve the positioning accuracy. The built-in touch screen and microcomputer make the parameter setting and result display more intuitive, and the operation is more convenient.

An industrial tablet computer is installed on the side of the fuselage, with a built-in industrial-grade camera, and CCD image software processing is used to directly export data and images, and complete manual and automatic measurement of images, which is convenient and quick.

Main Specifications：

Product advantages：

01 The instrument has 11 test force, 15 kinds of Brinell hardness tester scales. 14 kinds of conversion scales, stuiable for testing various metal materials.

02 Objective lens and pressure head switch automaticlly, and realize the software control of objective lens and pressure head swithc.

03 Hardness tester and computer integration, equipped with Win 7 system, with all the functions of the Computer, hardness test results can be directly generated WORD or EXCEL reports can be directly saved or Printer out.
04 Automatic lifting, automatic turret, and automatic  measurement.

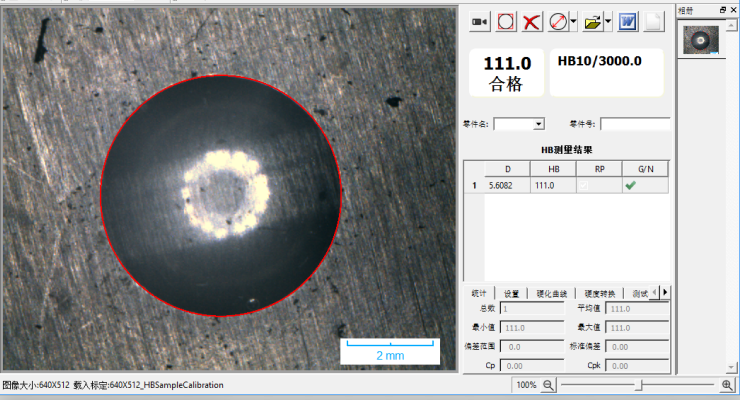

Introduction to Measurement Software：

iVision-HB Brinell hardness measurement software is mainly used for automatic indentation measurement and hardness calculation, with high digital image acquisition speed; The advanced aerial digital image remote sensing automatic tracking processing technology can accurately distinguish the Brinell indentation image in complex background. By using the computer digital image software processing technology, the excellent image processing algorithm is designed, which makes full use of the computer image data cloud computing ability, self-dynamic real-time measurement calculation, can accurately and reliably measure the Brinell hardness value, greatly improving the measurement accuracy and reliability.

Packing List：
