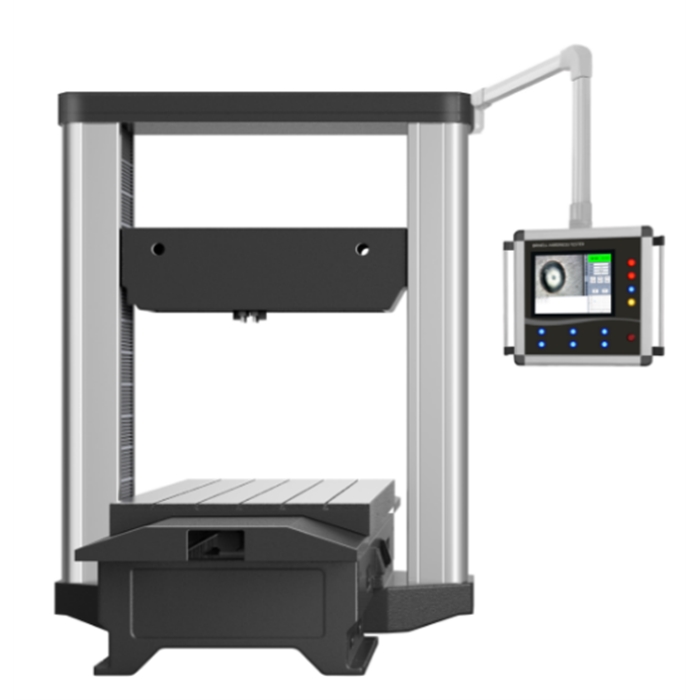

HBMS-3000C Gantry Brinell Hardness Tester
HBMS-3000C Gantry Brinell Hardness Tester
HBMS-3000C Gantry Brinell Hardness Tester

HBMS-3000C Gantry Brinell Hardness Tester

HBMS-3000C Gantry Brinell Hardness Tester

Details : Product Introduction

The machine uses the electronic loading and unloading test force, can automatically complete a working cycle, suitable for the determination of large metal parts Brinell hardness value. The maximum distance of 1000mm, maximum height up to 950mm; spindle lateral movement distance of 500mm; test process automation, no man-made operation error (Figure), large-scale mobile distance. High-precision reading microscope measurement system; particularly suitable for the determination of large metal parts Brinell hardness. Brinell hardness tester main application range: determination of ferrous metals, nonferrous metals and bearing alloy material Brinell hardness. Touch screen PLC electrical control performance stable and easy to operate.

Measurement Range

32-450HBS

Test Force

7.3559.80729.42KN75010003000KGF

Distance from Pressure head to workbench

10-1000mm

Distance between columns

1350mm

Workbench Size L x W

1500x1000mm

Power Supply

AC 220V
